NEW QUESTION # 17
Which code dictates the number of required exits for a 300-person assembly space?
- A. International Building Code
- B. NFPA 70
- C. ADA
- D. International Mechanical Code
Answer: A
Explanation:
IBC governs occupancy classification, occupant loads, and required means of egress. A 300-person taproom triggers egress path requirements under IBC Chapter 10. Objective 1.3 addresses code compliance.
NEW QUESTION # 18
During the documentation of an office building, the owner requests a fitness center amenity be added to the scope. The mechanical engineer informs the architect that the mechanical unit currently located on a utility mezzanine will need to increase in size to accommodate the required increased capacity.
Who should the architect confirm with that the larger unit will work in this location?
- A. Accessibility consultant
- B. Building owner
- C. Authority having jurisdiction
- D. Structural engineer
Answer: D
Explanation:
When the mechanical unit on a utility mezzanine increases in size:
The structural engineer must confirm the mezzanine can support the increased weight and dynamic loads of the larger unit.
The architect coordinates with the structural engineer to ensure structural integrity.
The building owner is informed but not responsible for technical assessment.
The authority having jurisdiction (AHJ) oversees code compliance but not structural verification.
Accessibility consultant deals with accessibility issues, not mechanical equipment sizing.
Reference:
NCARB ARE 5.0 Review Manual, Project Development and Documentation chapter Building systems coordination and structural integration
NEW QUESTION # 19
Refer to the exhibit.
What is an accurate description of the air distribution system shown?
- A. The system prohibits individual comfort control.
- B. Supply air is delivered at a low velocity.
- C. Ducted supply and return air is utilized.
- D. The system is inefficient in summer months.
Answer: B
Explanation:
The diagram shows a displacement ventilation system. In this system:
Cool supply air (about 65°F) is introduced at floor level at low velocity through floor diffusers.
Warm air rises as it picks up heat from occupants/equipment and stratifies near the ceiling, where it is returned or exhausted.
This creates a stratification layer with cooler, cleaner air in the occupied zone and warmer air above.
This is efficient for comfort, air quality, and energy use in spaces #12 ft high.
Why not other options:
A: This system uses a plenum return, not ducted supply and return for both.
C: It is efficient in summer since it uses warmer supply air and reduced fan energy.
D: Individual comfort control is possible via diffuser location/adjustment.
PDD Reference: ARE 5.0 PDD "Mechanical Systems-Air distribution types," ASHRAE Fundamentals, displacement ventilation diagrams.
NEW QUESTION # 20
Refer to the exhibit.
Which device allows for piping misalignment and isolation?
- A. B
- B. A
- C. D
- D. C
Answer: C
Explanation:
Understanding the Diagram

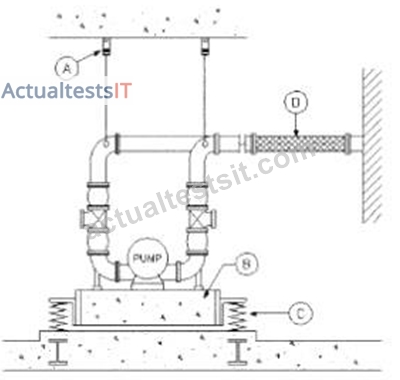

The image shows a pump installation detail with various vibration and alignment control devices:
* A - Typically a pipe hanger or suspension support to reduce strain on piping.
* B - Likely a flexible electrical conduit (for pump motor connection).
* C - Spring vibration isolators under the pump base to prevent vibration transmission into the building structure.
* D - A flexible pipe connector (also called a flex connector or braided flexible coupling).
Purpose of Flexible Pipe Connectors
Flexible pipe connectors (D in the diagram) are designed to:
* Absorb minor misalignment between connected piping systems.
* Reduce stress on pump flanges due to thermal expansion, settlement, or installation tolerances.
* Isolate vibration from the pump so that it is not transmitted along rigid piping to the building structure.
This makes them essential in mechanical systems where pumps, chillers, or other vibrating equipment connect to rigid building piping.
Why Other Options Are Incorrect:
* A. Pipe hangers/supports - Maintain alignment and support vertical loads but do not allow for misalignment or vibration isolation in the same way as flexible connectors.
* B. Electrical conduit/flexible connection - Relates to electrical supply flexibility, not piping alignment.
* C. Spring vibration isolators - Isolate vibration from equipment to the floor but do not address piping misalignment.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Integration of Building Materials & Systems - Mechanical Systems Coordination
* Source References:
* Mechanical and Electrical Equipment for Buildings (MEEB) - Chapter on Vibration Isolation & Pump Installation
* Architectural Graphic Standards - Flexible Connector & Piping Details
* Key Point: Flexible connectors at pumps and equipment protect against misalignment, vibration, and stress transfer to the piping system.
NEW QUESTION # 21
An architect has a contract with a local school district to redesign a school reception office to ensure a more efficient interaction between office staff, students, and parents. The following instructions are given to the architect:
* The renovation scope is limited to the footprint only of the existing reception office.
* Additional staff is not proposed for the renovated area.
* The existing ceiling and associated fixtures will be protected from damage during construction.
* The construction of the renovation must occur during the 10-week summer break.
Which of the following series drawings should be included in the documents set?
- A. Plumbing
- B. Mechanical
- C. Structural
- D. Electrical
Answer: D
Explanation:
The scope involves interior renovation of an existing school reception office, limited to the footprint and protecting existing ceiling and fixtures. Additional staff is not proposed, and construction is during a defined
10-week summer break.
Plumbing is unlikely to require new or modified systems unless specified; not mentioned here.
Structural changes are not indicated since footprint remains same and no structural modifications are noted.
Mechanical changes would typically be required if HVAC or ventilation systems are altered, but the ceiling and fixtures (likely including diffusers) must be protected and are presumably left unchanged.
Electrical modifications are common in interior renovations to accommodate lighting, power outlets, communication systems, and potentially security or reception technology updates.
Thus, electrical drawings should be included to cover these updates.
Reference:
NCARB ARE 5.0 Review Manual, Project Development and Documentation, Construction Documents chapter Typical interior renovation scopes often require electrical updates to accommodate new equipment and code compliance.
NEW QUESTION # 22
The architect has completed 60% of the construction documents. The owner wants to establish the guaranteed maximum price (GMP) at this point before 100% of the construction documents are complete. Several flooring finish items are still undetermined.
What should be included in the project manual to make sure the contractor has a cost to cover all finishes?
- A. Allowance of $30/sq. yd. for floor finishes
- B. Alternate to change broadloom carpet to carpet tile
- C. Schedule of flooring unit prices to be completed by the contractor
- D. Contingency of 10% added to the overall construction cost
Answer: A
Explanation:
When a GMP (Guaranteed Maximum Price) is established before the design is 100% complete and specific materials are not yet chosen, the correct approach is to specify allowances in the project manual.
An allowance is a fixed monetary amount for a specific scope item (e.g., flooring finishes) that allows the contractor to carry a cost in the bid/GMP until the actual product is selected. This ensures the GMP covers the item without delaying pricing.
A). Contingency - Is for unforeseen conditions, not specific unselected finishes.
B). Schedule of unit prices - Typically used for variable-quantity work, not for unknown product selection.
D). Alternate - Provides an option for substitution, but does not guarantee a base cost in the GMP.
PDD Reference: ARE 5.0 PDD "Project Manual and Specifications-Allowances, Alternates, and Unit Prices," AIA A201 §3.8, CSI Division 01-General Requirements.
NEW QUESTION # 23
A family-owned apple farm in the Upper Midwest is taking advantage of a change in the local zoning code that added a new Agri-Tourism class in the existing farm zone. This allows the Owner to build a new facility on their existing site. The building will be open to the public and include a brewery, distillery, tap room, and market. The architect is ready to submit the drawings to the Owner for the 50% construction documents review.
To accommodate a compressed construction schedule, the Owner will be utilizing a design-build process. The Contractor has submitted the Pre-Engineered Metal Building (PEMB) shop drawings to the Architect for review, due to the lead time on this critical path item. Once construction begins, farming operations must be able to continue uninterrupted.
Key project information includes:
* Brewing and distilling will operate year-round.
* Brewery will initially include four fermenting tanks. Owner has requested space for at least two additional tanks. Potential expansion will be based on future sales.
* Distillery will produce 16% alcohol, which is classified as a flammable liquid. Fire separations are required.
* Tap Room is designed with seating for 300 people, not including exterior patio seating. It will have views to the working orchards and the historic buildings on site.
* Tap Room is scheduled to be open from August through November. Owner would like options to extend operating dates based on popularity.
* The Market area will feature local farm products and is not conditioned.
* Entire building will be fully sprinklered.
* Selected building materials are low-maintenance, as requested by the Owner, for durability and to reflect the nature of a working farm.
* Mechanical and electrical systems will be hung from the building structure. These loads are included in PEMB shop drawings.
* Public water and sewer is not available at the Project Site.
* Occupancy sensors are included to reduce utility costs and achieve energy conservation requirements.
The following resources are available for your reference:
* Architectural Drawings, including plans, elevations, sections, and schedules
* Consultant Drawings, including structural, HVAC, power distribution, and plumbing
* PEMB Shop Drawings
* Design and Construction Schedule
* Specification Excerpts, showing relevant spec sections
* IBC and ADA Excerpts, showing relevant code and accessibility sections
* After reviewing the documents, the architect discovers a coordination issue in the corridor.
The owner requests that the metal panel skin be changed to EIFS.
Which of the following architectural sheets require changes to the notes and/or details? Check the three that apply.
- A. A-07
- B. A-06
- C. A-02
- D. A-03
- E. A-04
- F. A-00
Answer: A,B,D
Explanation:
Elevations (A-03): material callouts, notes, and textures for every façade.
Wall sections (A-06): assembly build-ups change (continuous insulation, drainage plane, WRB, attachment to PEMB girts, control joints, weeps, and terminations).
Details (A-07): heads/sills/jambs, base of wall/grade, parapet, expansion and control joints, and transition flashing details must be revised for EIFS.
Sheets like A-00 (cover) or A-02 (plans) generally don't carry the envelope system specifics and would not need detail changes for a cladding swap.
PDD refs: Drawings coordination-plans vs. elevations vs. sections/details; Division 07 EIFS system requirements; PEMB cladding interfaces.
NEW QUESTION # 24
A project located in a rural area without municipal sewer access will most likely require:
- A. Septic tank and leach field
- B. Ejector pump
- C. Grease interceptor
- D. Oil-water separator
Answer: A
Explanation:
Where no public sewer is available, on-site wastewater treatment (septic tank + leach field) is required. This supports Objective 3.2, considering utility systems and site limitations.
NEW QUESTION # 25
Refer to the exhibit.
During spring rains, the foundation walls around the basement space, as illustrated, experience an increase in lateral pressures.
Which one of the following is also a major concern?
- A. Differential lateral pressure on total building structure
- B. Vertical upward pressure on the basement floor
- C. Moisture absorption of the concrete foundation wall
- D. Increased weight on the footings
Answer: B
Explanation:
The diagram shows a basement foundation wall below the water table. During heavy rains, the water table can rise, increasing hydrostatic pressure against foundation walls and under the slab.
Key concern:
While lateral water pressure against the walls is a factor, the question specifies "also a major concern". In this scenario, the water pressure beneath the slab can cause buoyant uplift - vertical upward pressure - known as hydrostatic uplift or floatation.
If this upward force exceeds the weight of the slab and the structure above, it can cause the slab to crack, lift, or fail - especially if there is no adequate under-slab drainage or tiedown anchors.
Why not the other options:
A). Moisture absorption of the concrete foundation wall - Concrete is porous, but waterproofing and drainage address this; not as critical in terms of structural threat as uplift.
B). Increased weight on the footings - Hydrostatic pressure acts laterally and upward; it does not significantly increase vertical load on footings in the same way dead load does.
D). Differential lateral pressure on total building structure - Lateral pressure affects the foundation walls, but
"total building structure" is less directly impacted than the immediate risk to the slab from uplift.
NCARB PDD References:
ARE 5.0 Handbook - PDD Section: Site conditions and foundation systems
IBC 2018 Section 1805.4 - Waterproofing and drainage
Foundation Engineering principles - Hydrostatic uplift and buoyancy
NCARB PDD Study Guide Topic: Subsurface water control (sumps, drain tiles, hydrostatic relief)
NEW QUESTION # 26
In winter conditions, when the outdoor air is below freezing and the indoor humidity is maintained at 40 percent relative humidity for 24 hours a day, ice forms on the exterior surface of the stone facing.
Which of the following elements is missing from the building wall section?
- A. Rain screen
- B. Wall insulation
- C. Air space
- D. Vapor barrier
Answer: D
Explanation:
With outdoor below freezing and indoor RH ~40% continuously, interior vapor will migrate outward. If a proper interior-side vapor barrier/retarder is missing, moisture moves through the wall and can condense and freeze at the cold exterior stone, forming visible ice. Insulation, air spaces, or rain screens help heat/moisture management, but the symptom (ice due to vapor diffusion) points specifically to the lack of an interior vapor barrier in a cold-climate assembly.
PDD references: Moisture control & vapor retarder strategy in cold climates; condensation diagnostics (ASHRAE Fundamentals; ARE 5.0 PDD-Envelope moisture control).
NEW QUESTION # 27
Why is the vertical surface of a dry-stacked stone wall often battered into the retained material?
- A. Increased impermeability that reduces equivalent fluid pressure
- B. Increased cohesion between individual stones that make up the wall
- C. Increased resistance to soil thrust
- D. Increased resistance to surface erosion of the wall
Answer: C
Explanation:
A battered (leaning back) face on a dry-stacked retaining wall improves stability against lateral earth pressure by shifting the wall's resultant closer to/within the middle third of the base, increasing frictional resistance and reducing overturning. It does not significantly change permeability (C) or directly increase cohesion between stones (D), and erosion resistance (B) is secondary compared to stability.
PDD References: Site & foundation systems-retaining wall behavior, active/passive earth pressures; IBC
/Geotechnical fundamentals; CSI Div. 32 site improvements.
NEW QUESTION # 28
Where is the proper place to put a vapor barrier in a cold climate?
- A. On the exterior between the framing and the sheathing
- B. On the interior between the gypsum wallboard and the framing
- C. On the exterior between the metal siding and the sheathing
- D. In the cavity of the framing space
Answer: B
Explanation:
In cold climates, the vapor drive is from the warm interior to the cold exterior during winter. The vapor retarder/barrier belongs on the warm-in-winter side of the assembly-i.e., behind the interior gypsum, before the framing/insulation-to prevent interior moisture from reaching cold layers where it could condense.
PDD references: Psychrometrics & vapor drive; vapor retarder placement (ASHRAE; IBC/IECC guidance; ARE 5.0 PDD-Thermal & Moisture Protection).
NEW QUESTION # 29
A revolving door is to be mounted in the facade of a building. Story drift is limited to 0.002 times story height in any direction. The door can tolerate a maximum departure from vertical of 1/4 inch.
What is the maximum height the door can be to accommodate the story drift?
- A. 11 ft
- B. 9 ft
- C. 8 ft
- D. 10 ft
Answer: D
Explanation:
Given:
Maximum story drift ratio = 0.002 × story height (H)
Maximum door tolerance (max lateral displacement allowed) = 1/4 inch = 0.25 inch Since the door can tolerate up to 0.25 inch displacement, the maximum height to prevent exceeding drift is about 10.4 ft.
But check options-since 10.4 ft is closest to option B: 9 ft or option C: 10 ft?
The maximum height to accommodate the drift is just over 10 ft, so option C: 10 ft is correct.
Correction to Verified answer: C. 10 ft

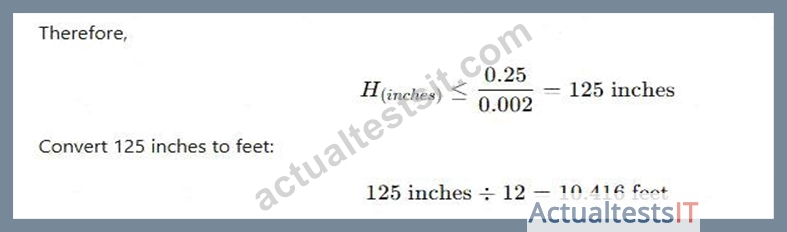

Summary:
Max drift = 0.002 × H
Max drift # 0.25 inch
Solve for H # 125 in = 10.4 ft
Door can tolerate max 10 ft height to not exceed drift
Reference:
NCARB ARE 5.0 Review Manual, Structural Systems and Building Envelope chapters IBC and ASCE 7 provisions on story drift limits and building movement tolerances
NEW QUESTION # 30
Where is the proper place to put a vapor barrier in a cold climate?
- A. On the exterior between the framing and the sheathing
- B. On the interior between the gypsum wallboard and the framing
- C. On the exterior between the metal siding and the sheathing
- D. In the cavity of the framing space
Answer: B
Explanation:
In cold climates, the vapor drive is from the warm interior to the cold exterior during winter. The vapor retarder/barrier belongs on the warm-in-winter side of the assembly-i.e., behind the interior gypsum, before the framing/insulation-to prevent interior moisture from reaching cold layers where it could condense.
PDD references: Psychrometrics & vapor drive; vapor retarder placement (ASHRAE; IBC/IECC guidance; ARE 5.0 PDD-Thermal & Moisture Protection).
NEW QUESTION # 31

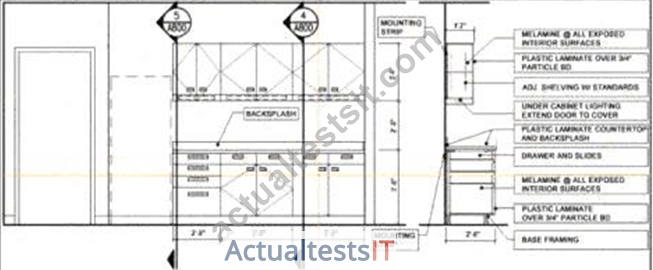

Refer to the exhibit.
Construction document drawings are in the final review stages. The architect needs to coordinate the casework detail with the probable cost estimate.
Click on the drawing note in the casework section that does not align with the cost estimate.
Answer:
Explanation:
Explanation:
In the casework section drawing provided, the detail that likely does not align with the cost estimate is the note:
"PLASTIC LAMINATE COUNTERTOP AND BACKSPLASH"
This is often a higher-cost item compared to alternatives like post-formed countertops, solid surface over MDF, or budget composite finishes. If the project is under cost pressure, specifying both a plastic laminate countertop and a separate laminate backsplash can increase material and labor costs due to custom fabrication and edge treatments.
NEW QUESTION # 32
Owners of a busy two-story theater complex want to renovate. The new renovations include increasing the second floor lobby and doubling the number of second floor movie screens. The owner favors the use of escalators. Movies are scheduled to start simultaneously every three hours. The theater currently has a pair of
24-inch-wide parallel escalators, one of which goes up and the other down.
Which of the following should be proposed to accommodate the increased traffic to the second floor?
- A. Extend balustrades at escalator landings
- B. Install a new elevator in the lobby
- C. Increase the existing escalator speeds to 130 fpm
- D. Install a new escalator that reverses direction
Answer: D
Explanation:
Given:
The theater doubles its second-floor movie screens, increasing patron traffic.
Existing escalators are two 24-inch wide units, one up and one down, with simultaneous movie start times every 3 hours.
To handle increased traffic:
Increasing existing escalator speed to 130 fpm (option A) is limited by safety and code limits (typically max around 100 fpm); also increases wear.
Installing a new elevator (option B) is helpful for accessibility but does not efficiently handle high flow of large crowds during peak.
Installing a new escalator that reverses direction (option C) (also called a "dance" or "two-way" escalator) allows flexibility to accommodate peak traffic flow-e.g., two escalators up during rush times and one down, or vice versa.
Extending balustrades (option D) improves safety but does not increase capacity.
Therefore, option C is the best solution to manage increased passenger flow.
References:
NCARB ARE 5.0 Review Manual, Environmental Systems and Building Services chapter Vertical transportation design principles in public assembly spaces ASME A17.1 Safety Code for Elevators and Escalators
NEW QUESTION # 33
......
NCARB PDD Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
Verified PDD dumps Q&As Latest PDD Download: https://2cram.actualtestsit.com/NCARB/PDD-exam-prep-dumps.html
